HW5100

Material overview

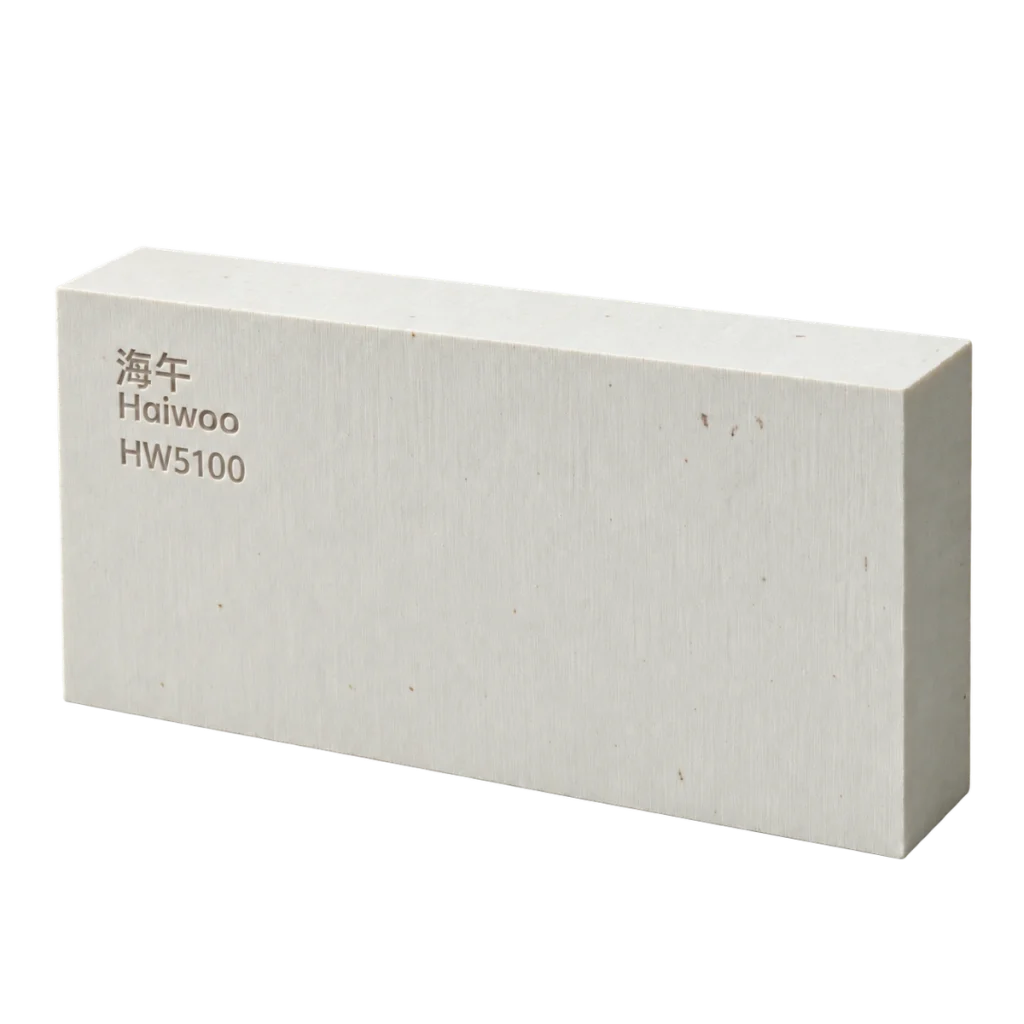

HW5100 is a polyurethane board for machined models and tooling. Compare its density, hardness and mechanical properties with your project requirements.

The ranges below are specification values for the board material. Request the current technical and safety information, including test conditions and machining guidance, before selecting and processing this grade.

Material information

Material / process

Polyurethane

Density

0.98–1.02 g/cm³
ISO 1183 · specified range

Hardness

75–78 Shore D
ISO 868 · specified range

Flexural strength

68–72 MPa
ISO 178 · specified range

Compressive strength

85–90 MPa
ISO 604 · specified range

Board format

750 × 500 × (35 / 50 / 75 / 100) mm
Length × width × available thicknesses; availability confirmed with quotation.

Board format

1500 × 500 × (35 / 50 / 75 / 100) mm
Length × width × available thicknesses; availability confirmed with quotation.

Board format

1000 × 500 × (30 / 50 / 75 / 100) mm
Length × width × available thicknesses; availability confirmed with quotation.

Request the technical and safety data for this material, including processing parameters and test conditions.

Supply & material preparation

Three board formats are listed below. Tell us the format, thickness, quantity and destination you need. Stock availability, cutting or bonding requirements, packaging and lead time are confirmed with your quotation.
