HW515

Material overview

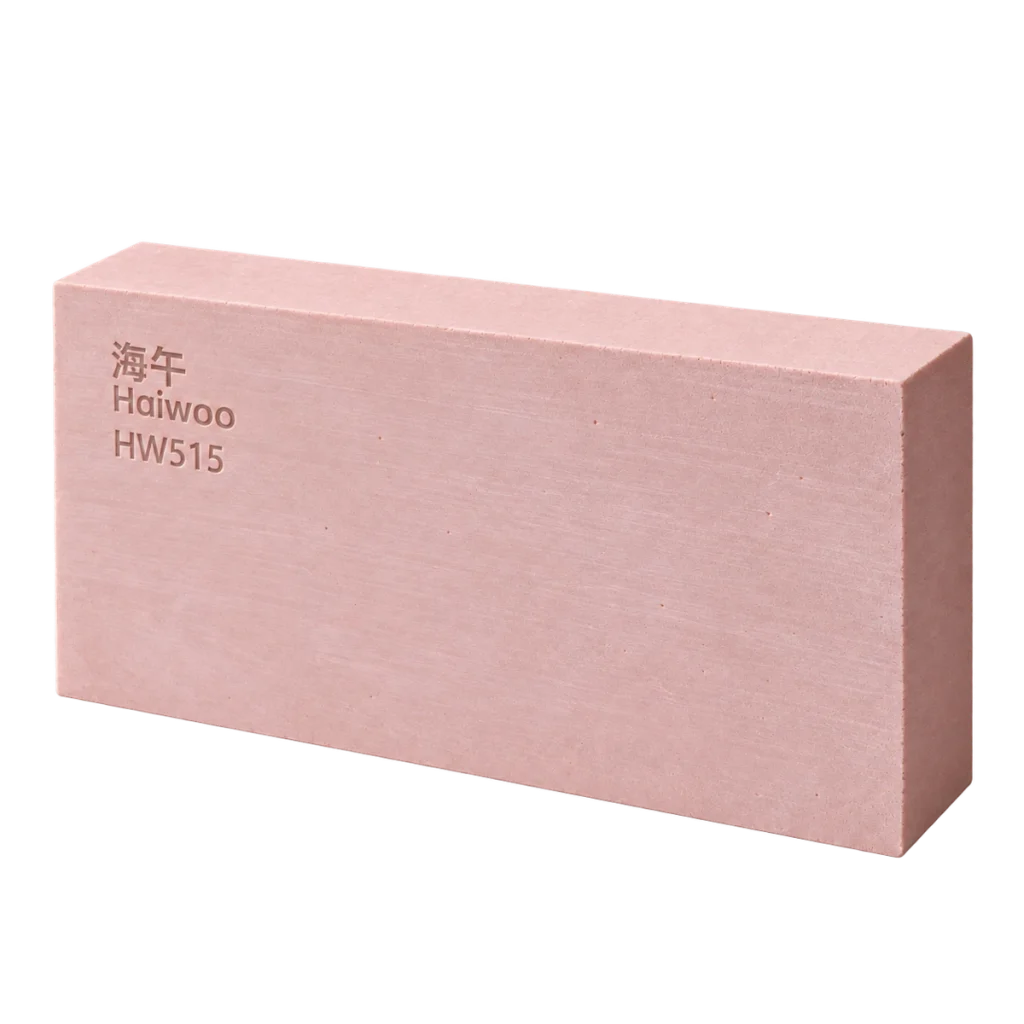

HW515 is an unsaturated polyester tooling board for mould models and tooling patterns. The material can be machined to create the required model shape.

Discuss surface requirements, machining, bonding and finishing with Haiwoo. Request the current technical and safety information before selection or machining.

Material information

Material / process

Unsaturated polyester

Specific gravity

0.65–0.70 dimensionless
At 25°C.

Hardness

60–70 Shore D
ISO 868, scale D.

Board format

1500 × 500 × 50 mm
Length × width × thickness; listed standard format.

Board format

1500 × 500 × 75 mm
Length × width × thickness; listed standard format.

Board format

1500 × 500 × 100 mm
Length × width × thickness; listed standard format.

Request the technical and safety data for this material, including processing parameters and test conditions.

Supply & material preparation

Standard board formats are listed below. Confirm stock, cutting requirements, quantity, destination and lead time with your quotation.
